LAB Implement Data Policies

LAB Implement Data Policies

Task :

You will deploy custom traffic engineering, by using data policies for Branches 1 and 2. You will define a policy to prefer the mpls transport for corporate traffic while other traffic can use all available transports. The task is implemented with the use of a centralized data policy.

The policy should implement the following:

• Match traffic that is sourced from the Branch1 and 2 VPN 10 networks.

• Match traffic that is destined to the DC VPN 10 networks.

• Apply a policy to steer the traffic over the mpls transport.

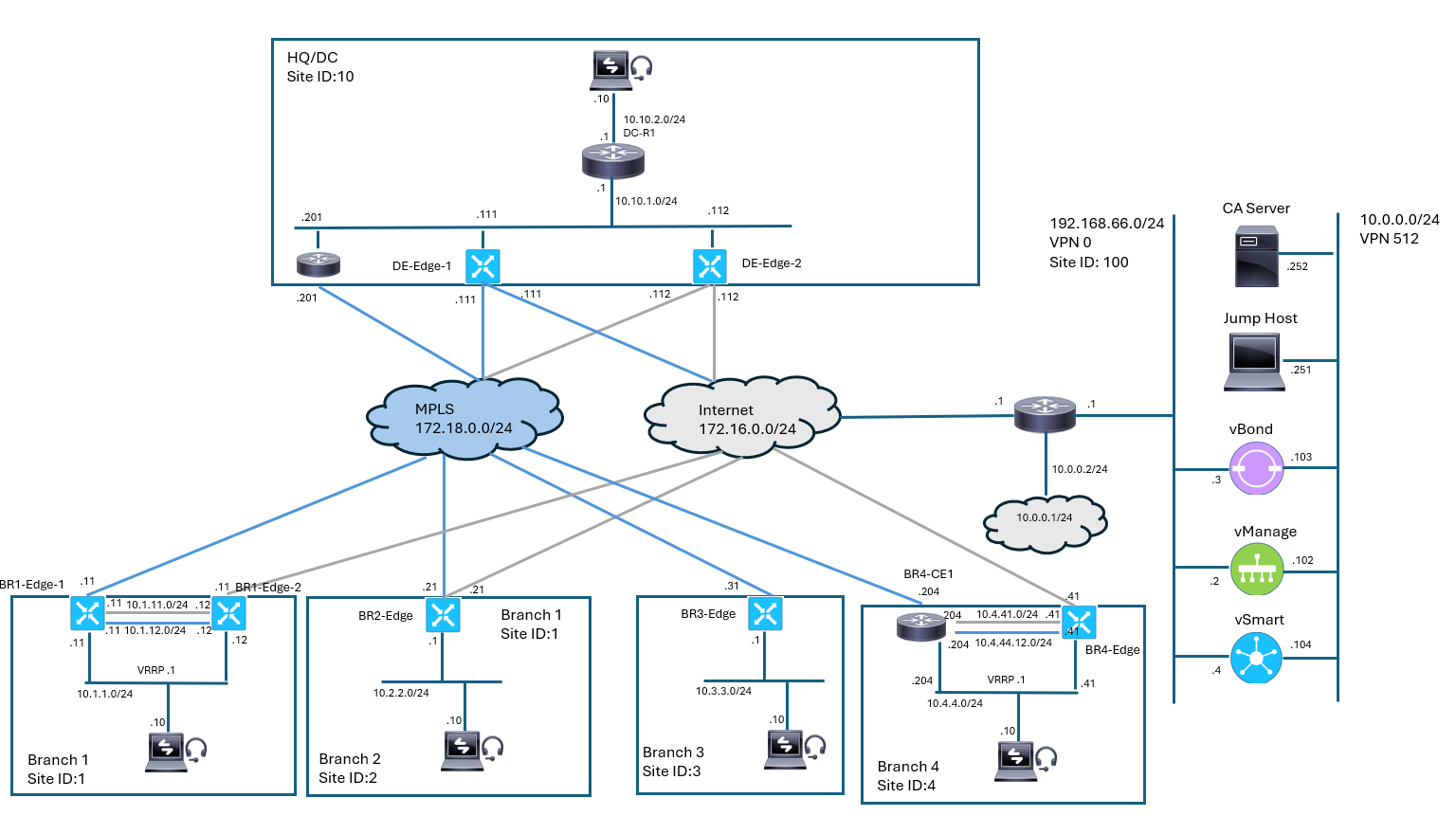

Topology:

Solution:

From the Cisco vManage main menu, navigate to Monitor > Devices. Choose the BR1-Edge1 WAN Edge, scroll down in the left pane, open the Troubleshooting tools, and start the Simulate Flows tool.

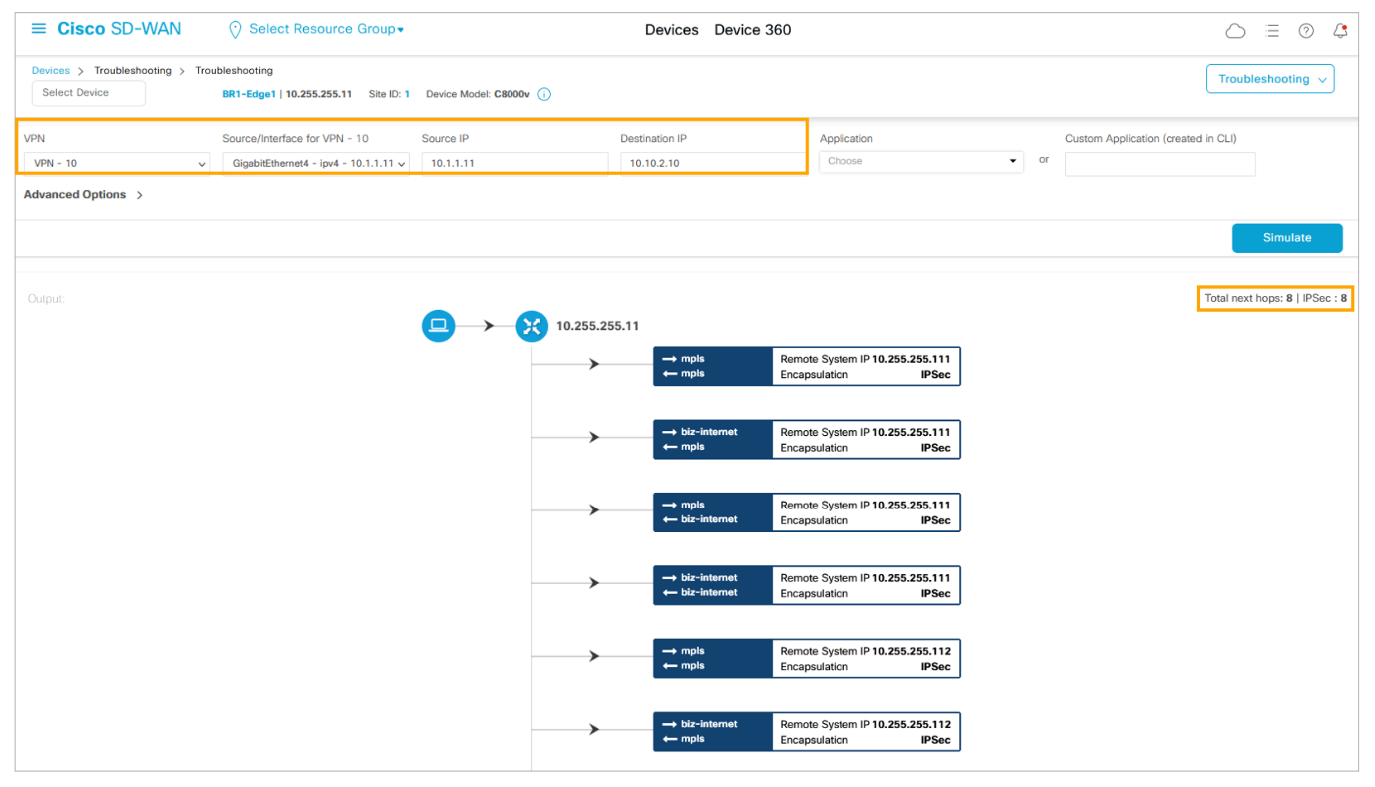

Simulate a flow from VPN 10, GigabitEthernet4 (10.1.1.11), to the DC-PC (10.10.2.10). All the available transport that is being used for the flows is displayed.

Choose the following parameters, and click Simulate:

• VPN: 10

• Source Interface: GigabitEthernet4 – ipv4 – 10.1.1.11

• Destination IP: 10.10.2.10

Scroll down to see all the results. All the available transport that is being used for the flows is displayed. BR1-Edge1 has a total of eight tunnels—four tunnels to each remote WAN Edge device at the data center across both transports.

In vManage, navigate to Configuration > Policies and edit the Branch1 template. From the vManage main menu, navigate to Configuration > Policies.

Create a site list from the dual transport branches (Branches 1 and 2).

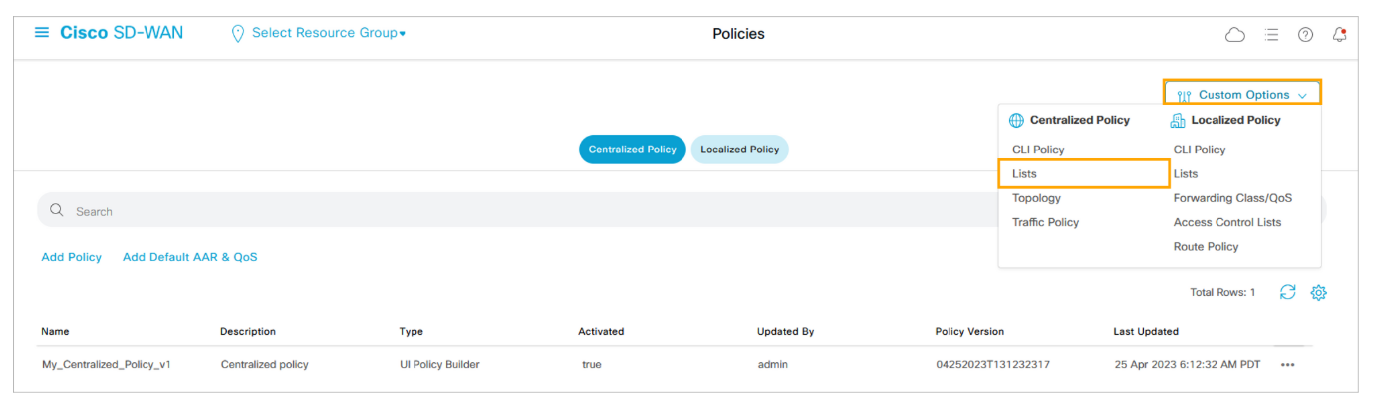

From the Custom Options menu in the top-right corner, choose Lists under the Centralized Policy heading.

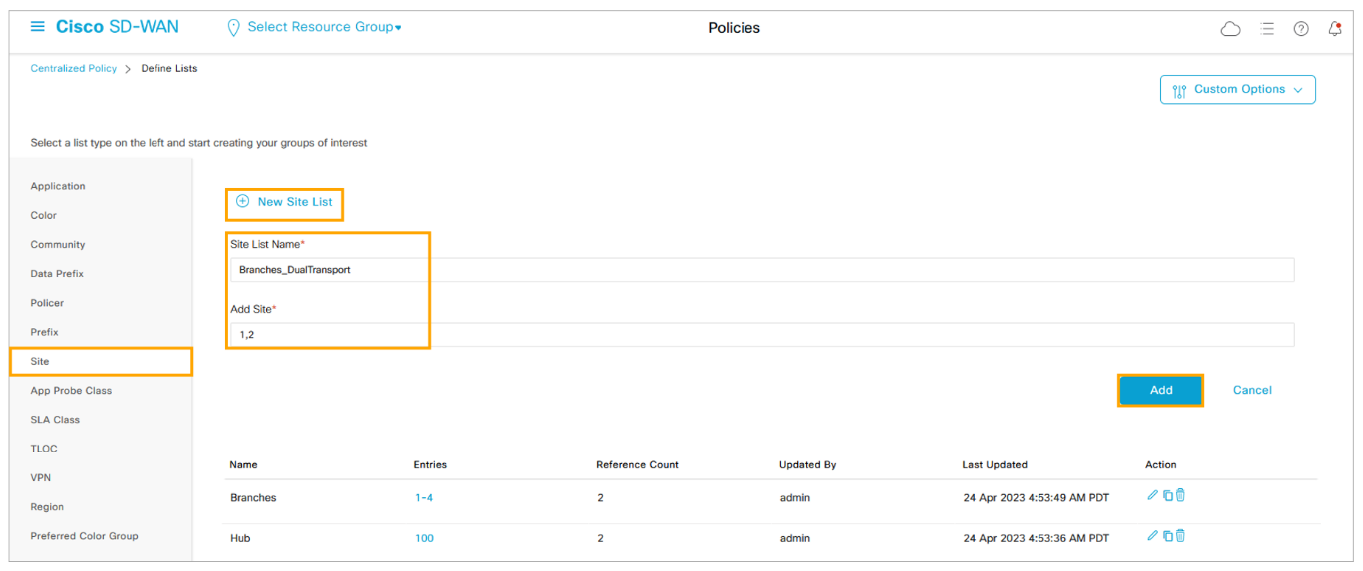

Create the site list as follows:

• Site List Name: Branches_DualTransport

• Add Site: 1,2

Click Add to create the site list.

Create two data prefix lists. The first list should include the IPv4 prefixes from Branch 1 (10.1.1.0/24) and Branch 2 (10.2.2.0/24). The second list should include the IPv4 prefix from the data center where the DC-PC is located (10.10.2.0/24).

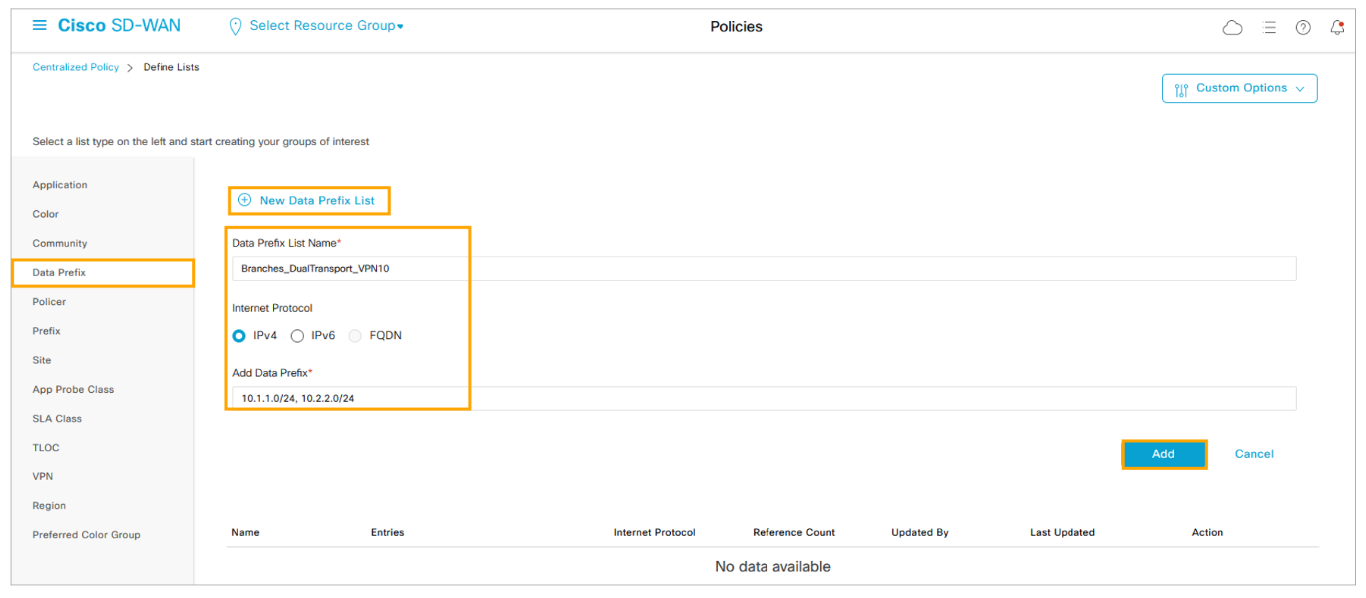

From the left pane, choose Data Prefix. Click (+) New Data Prefix List and create the first list as follows:

• Data Prefix List Name: Branches_DualTransport_VPN10

• Add Data Prefix: 10.1.1.0/24, 10.2.2.0/24

Click Add to create the data prefix list.

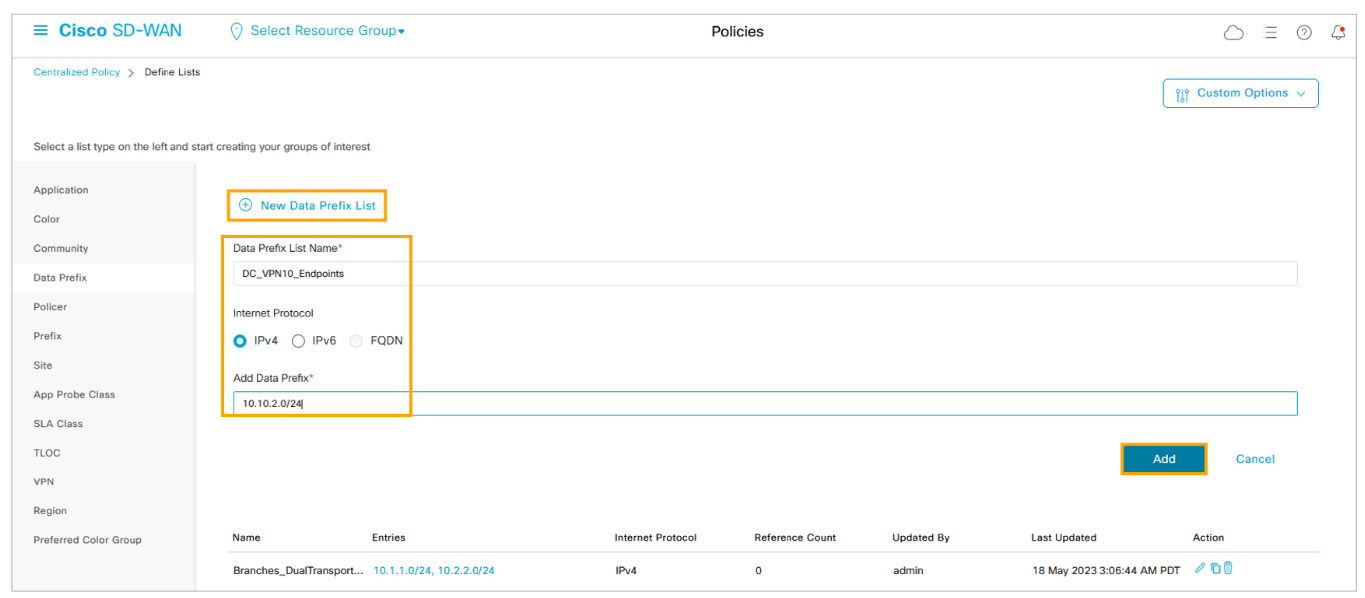

Click (+) New Data Prefix List again and create the second list as follows:

• Data Prefix List Name: DC_VPN10_Endpoints

• Add Data Prefix: 10.10.2.0/24

Click Add to create the data prefix list.

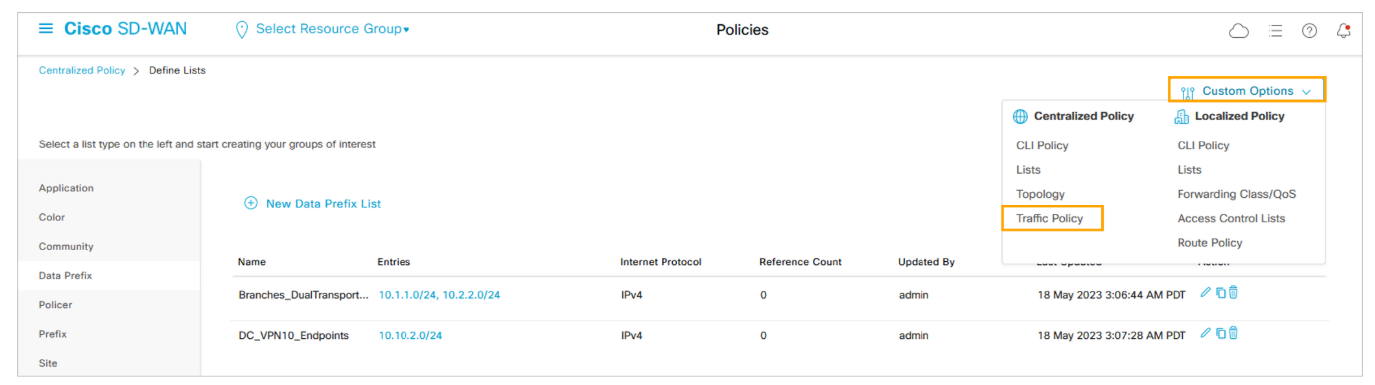

Create a new centralized data policy to configure traffic engineering.From the Custom Options menu, choose Traffic Policy under the Centralized Policy heading.

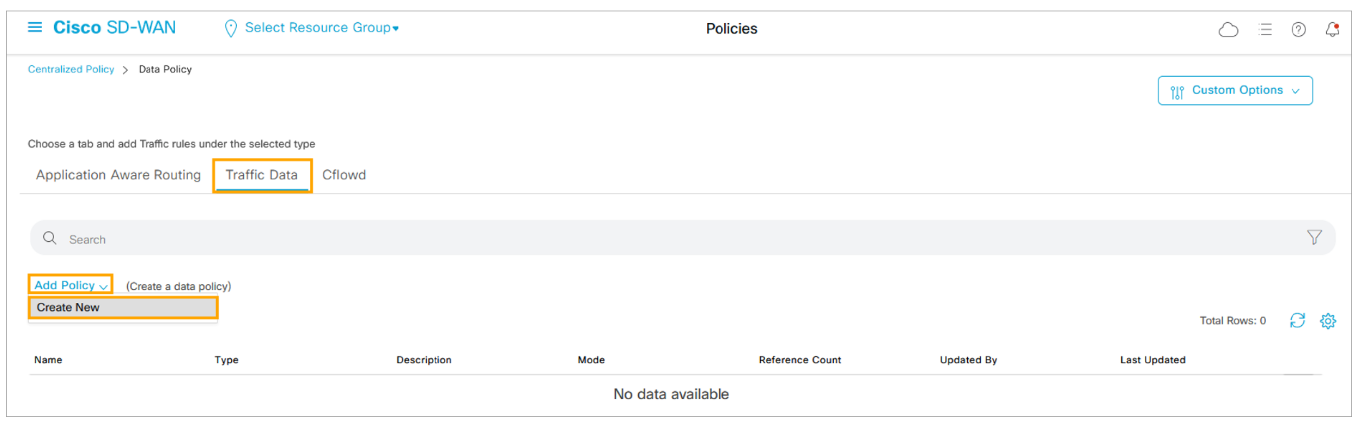

Click the Traffic Data tab, click Add Policy, and then click Create New to create a new data policy.

Type Branches_DualTransport_TrafficEngineering_v1 in the Name field, and type Dual transport branches – traffic engineering policy in the Description field.
