Management of Industrial Extended Network

Task

In this we will learn how to manage the Extended Network which is externally connected to SD-Access fabric.

Solution

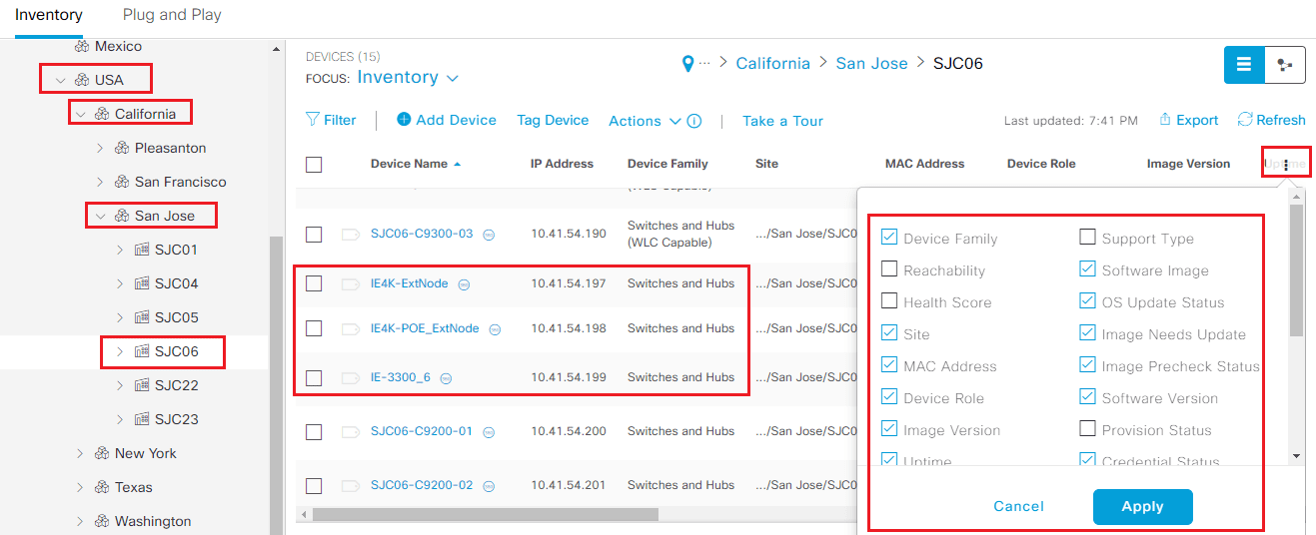

Log in to DNA center Provision | Inventory | Global | North America | USA | California | San Jose | SJC06 and scroll to find the Industrial Assets.

Also click on 3 dots on the right side of Select the Device Series and then Apply.

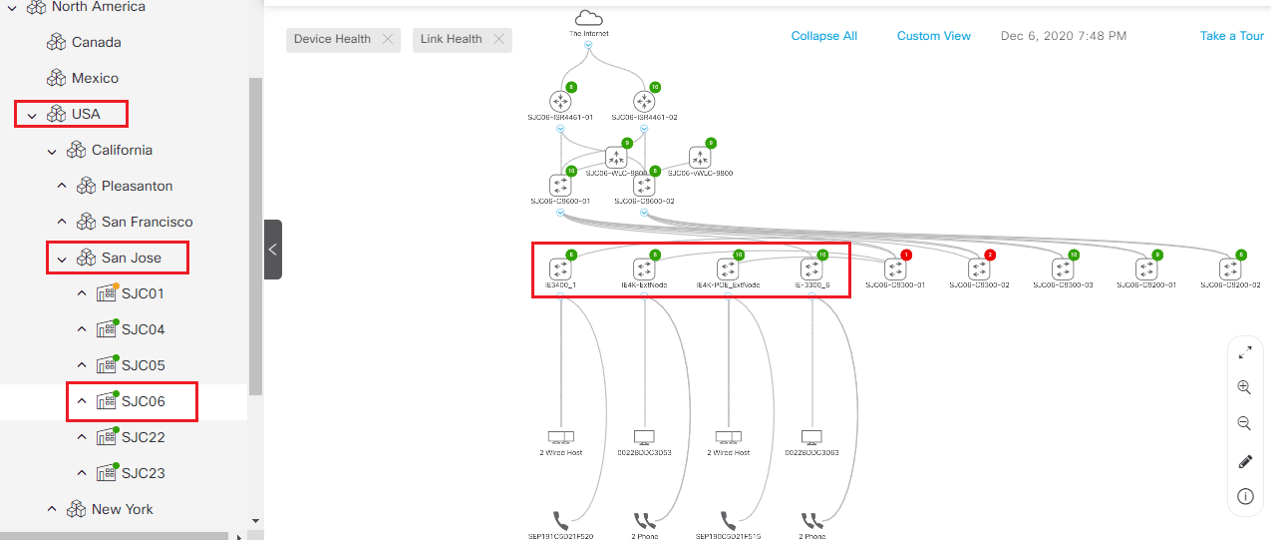

Now let’s GO to DNA Center | Tools | Topology, in this on the left side of Topology, Expend North America | USA | California | San Jose and then select SJC06.

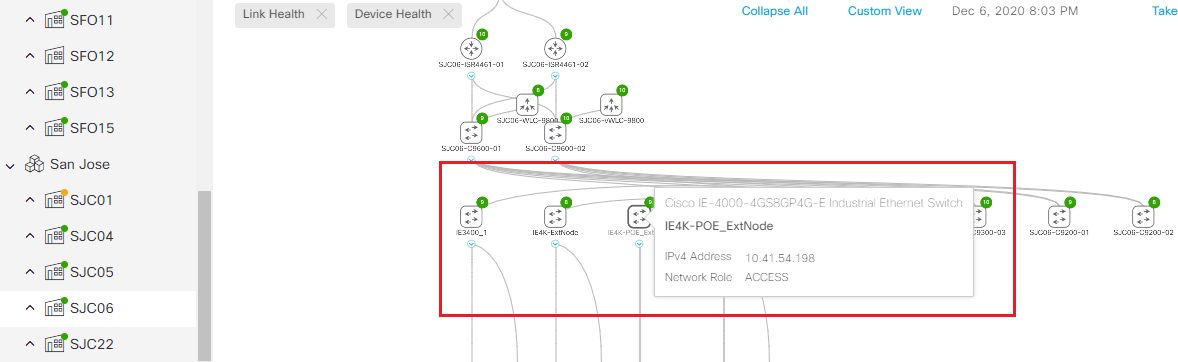

Mouse over any Industrial Switch icon to see basic information of that device

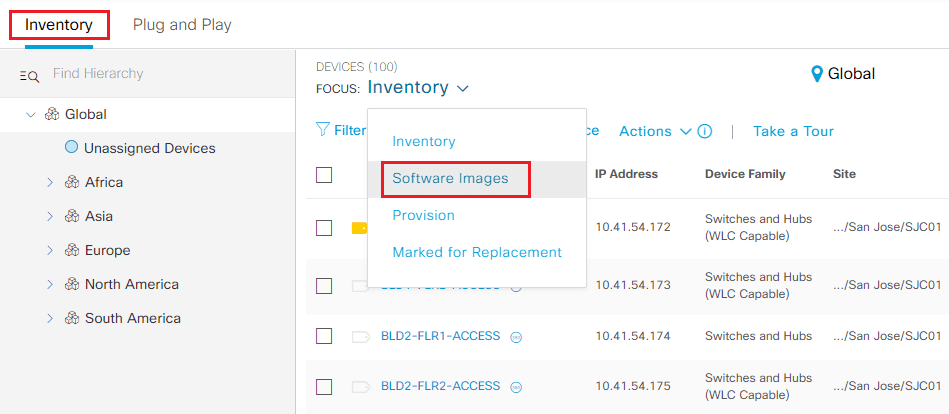

Now to see the Software Version, Log in to DNA center Provision | Inventory | now on screen Pull down Menu under Inventory and then select Software Images.

The Output will show the Software Image details, Image Version details etc.
