Learn how to visualize the Over all health of Wireless Client

Task

In this task we will learn to understand the Overall health of Wireless Client across an Enterprise.

Solution

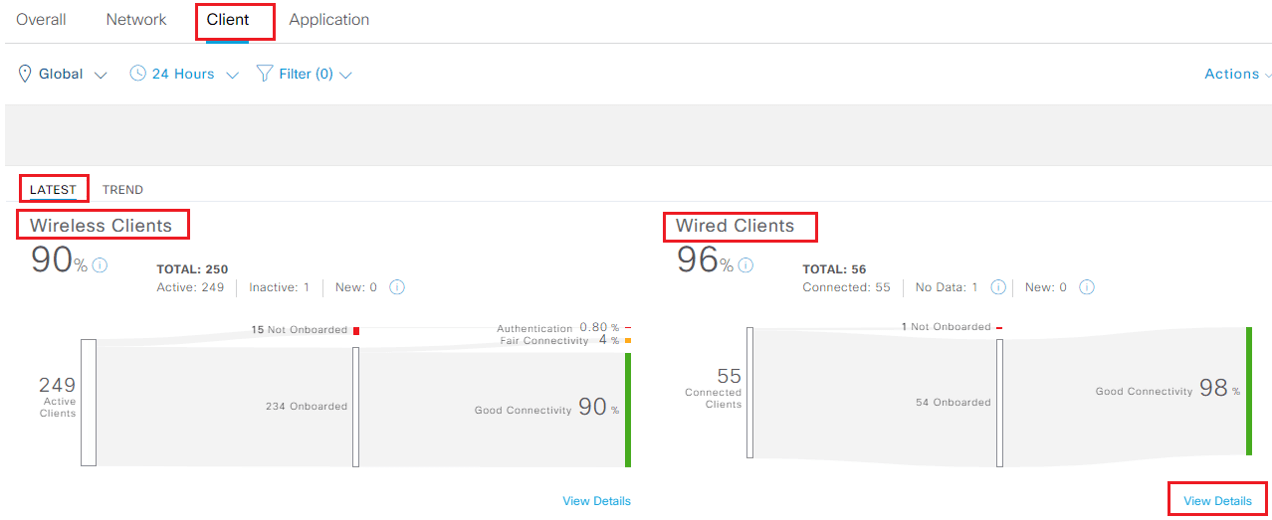

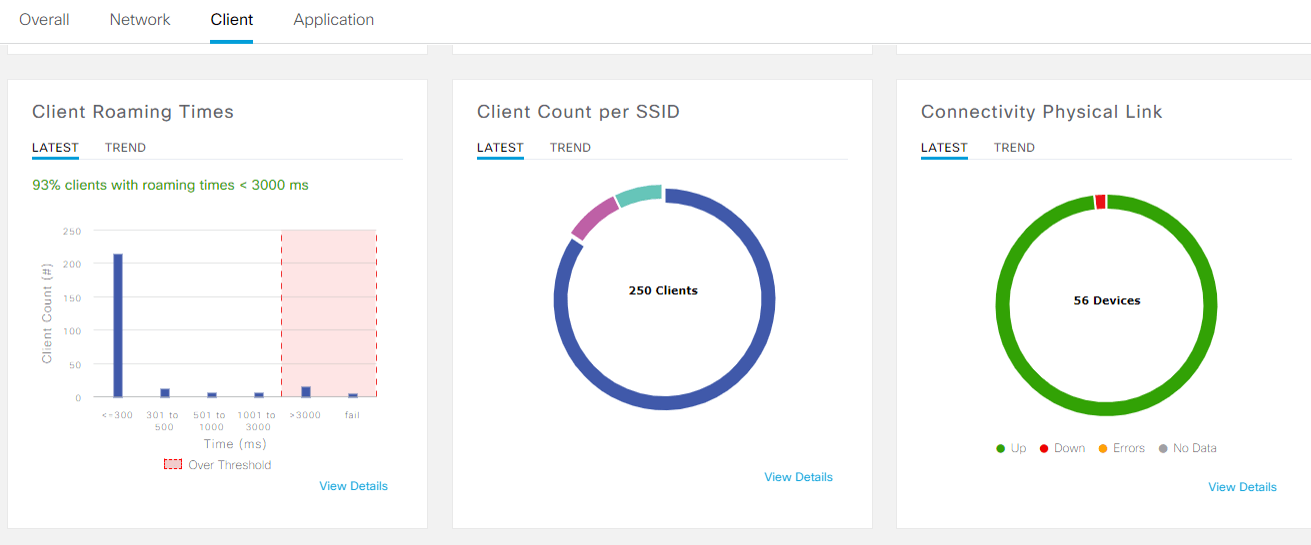

To Check Overall Health of Client Go to Assurance | Dashboard | Health | Client Health. Scroll to the charts in the middle of the page

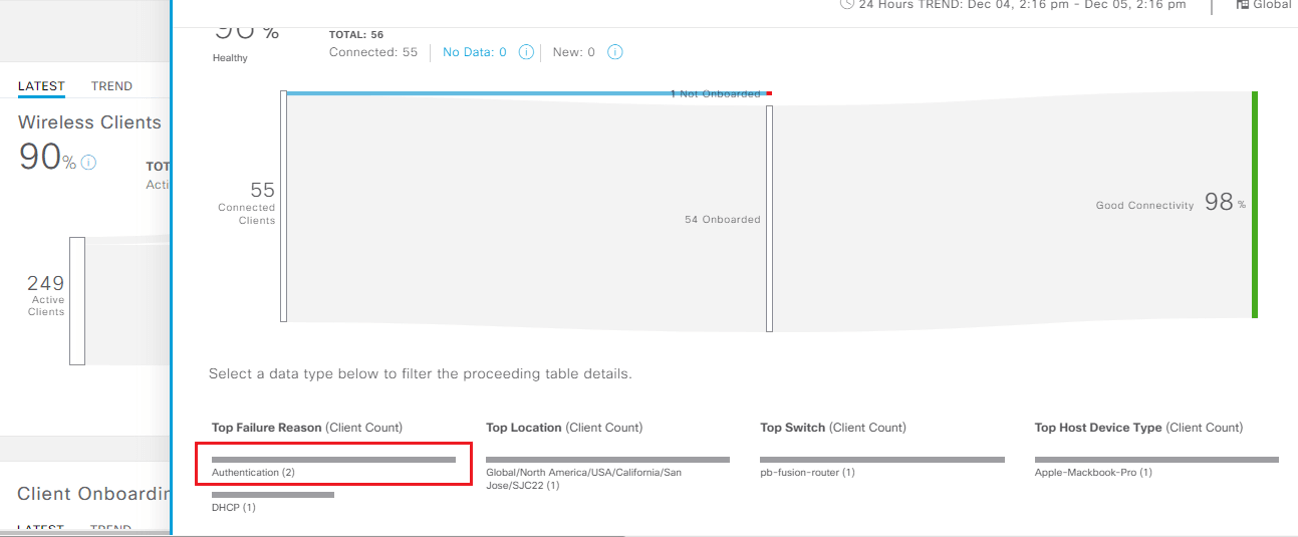

Click View Details as mentioned on Figure1. To understand the clients impacted, click Authentication.

Now let’s see how to Client 360 View.

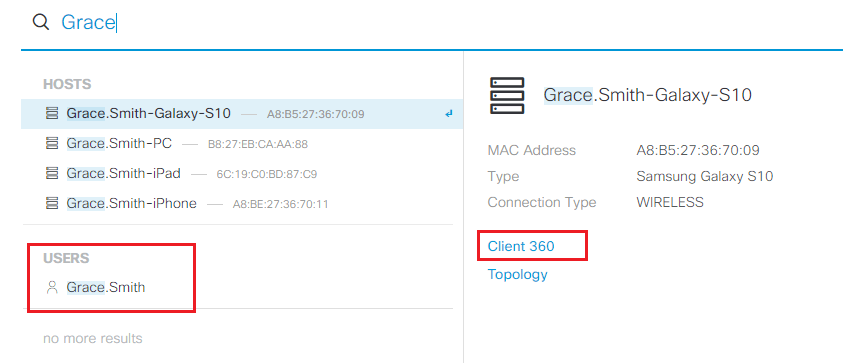

Navigate to the search engine icon in the top right corner and type Grace. Click Grace.Smith and then click User 360.

Scroll to the Event Viewer section to see a Broadcast Rekey issue. In the Event Viewer, expand the Broadcast Rekey and click Key Exchange.
