LAB Configure Disjoint L2 Network

LAB Configure Disjoint L2 Network

Task:

Traffic for VLAN 120 must traverse from one of the Uplink for both fabrics A and B on Interface Eth1/9.

Solution:

Login to UCS | Under Equipment | Select fabric Interconnect A and then | Fixed Module: Ethernet Ports | Select Eth1/9 and Configure as Uplink Port. repeat for Fabric Inter Connect B Also.

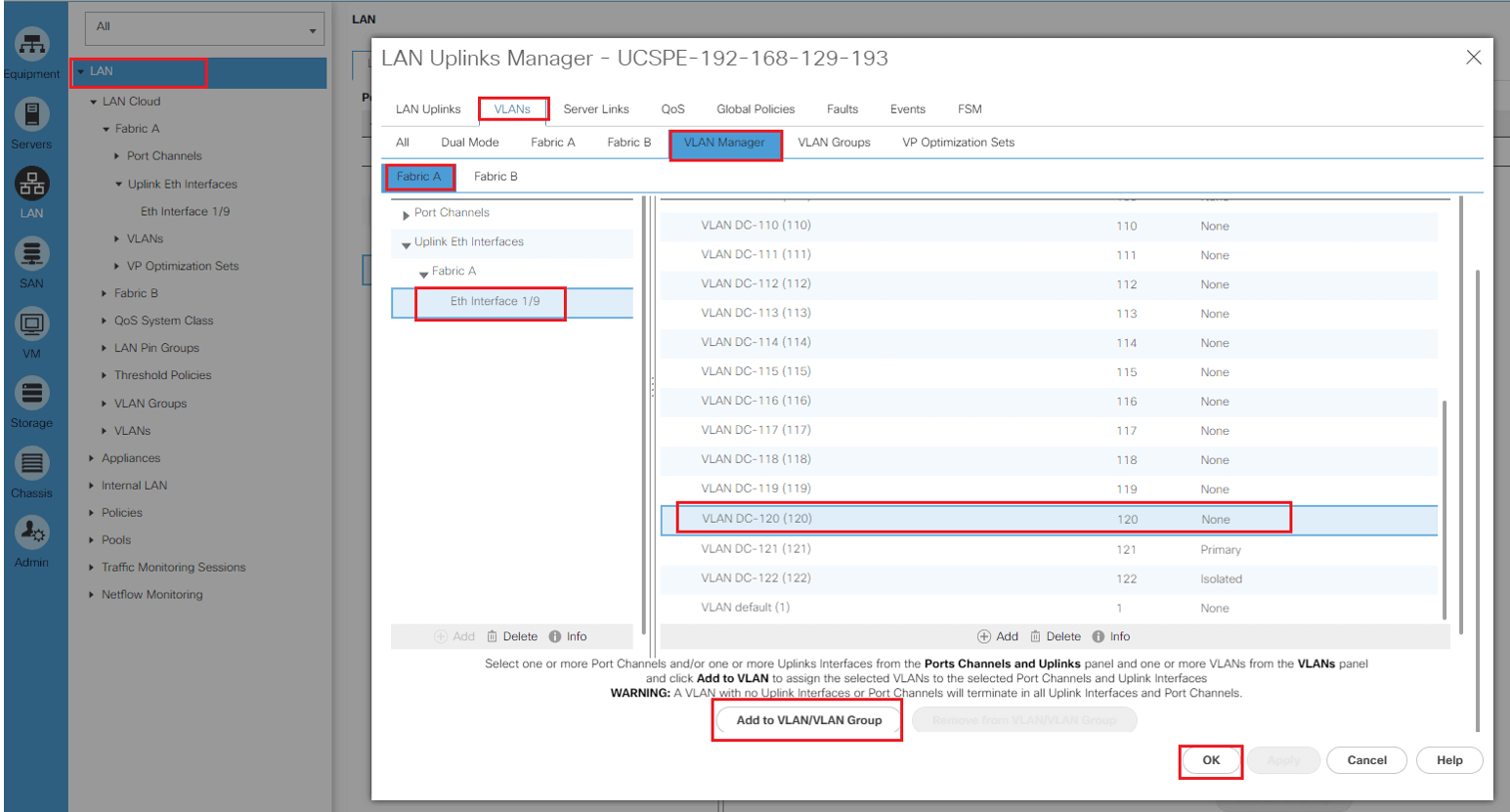

Now under LAN | Go to LAN Uplink Manager | On the VLANs tab, click the VLAN Manager tab, and then click Fabric A. In the left pane, expand Uplink Interfaces >> Fabric A, click an unused interface such as Eth Interface 1/9, click VLAN DC-120 in the right pane, and then click Add to VLAN at the bottom.

Perform Same Configuration on fabric B
