Configure ISE Profiling

Configure ISE Profiling

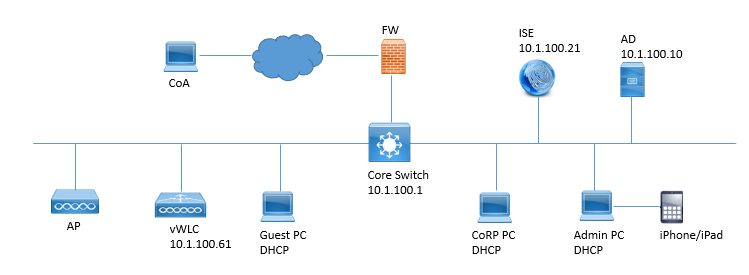

Topology:

Below is the topology provided to configure in lab

Task:

Perform below task as per above topology.

• Configure and Enable Profiler Service and Profiler Feed Service
• Configure NAD for SNMP Polling & Global SNMP Profiler Setting
• Verify NAD Configuration for Profiling

Solution:

Login to ISE, Navigate to Work center | Profiler | Overview to view the Profiler Configuration steps.

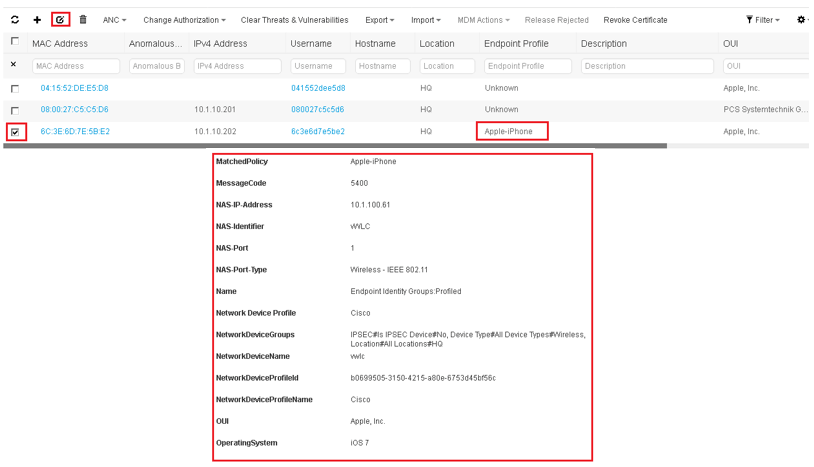

Navigate to Context Visibility | Endpoints | End Point Classification. Select your iPhone MAC and Edit

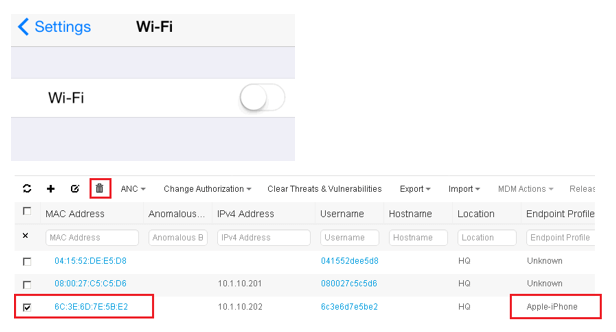

Go to Other Attribute and Verify its OUI and Profile. Now Disable the Wi-Fi and Delete the End points from ISE.

Enable Profiling Service:

Navigate to Work center | Profiler | Overview | Under Prepare Section | Click on deployment

Select your ISE Node and Edit and then Scroll Down and on Policy Service Section | Check Enable Profiling Service

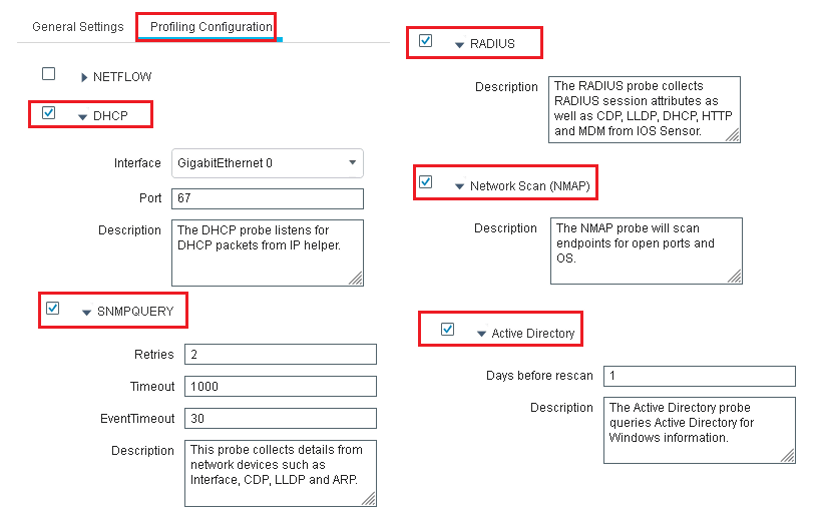

Click on Profiling Configuration | Enable the Various Profiling options

Configure the Feed Service:

Navigate to Administration | Feed Service | Profiler
